■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | bGH poly(A) signal |
質粒分類: | 哺乳系列質粒；哺乳表達質粒；pCMV系列質粒 |
質粒大小: | 6210bp |
原核抗性: | Amp |
真核抗性: | Zeo |
克隆菌株: | DH5a |
培養條件: | 37℃，5%CO2 |
表達宿主: | 293T等哺乳細胞 |
誘導方式: | 無需誘導 |
5'測序引物:
| CMV-F（CGCAAATGGGCGGTAGGCGTG）
|
3'測序引物: | BGH（TAGAAGGCACAGTCGAGG） |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: | Zeo
|
熒光標記: | 綠色
|
■ 質粒簡介
pTracer-CMV2的CMV啟動子后有MCS供插入外源基因，hEF1α啟動子調控Cycle 3 GFP-Zeocin fusion的表達，可以做到既有熒光蛋白來做轉染指示，且熒光基因表達和外源基因表達又不會互相干擾，而且Zeocin也可以用來做穩定性細胞篩選。另外，由于EM-7啟動子的存在，Cycle 3 GFP-Zeocin fusion在E.coli中也可以表達，可以用來做原核熒光定位。
pTracer-CMV2 is a 6.2 kb mammalian expression vector derived from pcDNA3.1 and designed for visual detection of transformed E. coli cells and transfected mammalian cells. The vector contains the following elements:
Cycle 3-GFP, an improved GFP (Green Fluorescent Protein) gene (Crameri et al.,1996), fused to the Zeocin? resistance gene (see below) for convenient,noninvasive detection of transformed or transfected cells
? Human elongation factor 1?-subunit promoter (hEF-1?) for mammalian expression of the Cycle 3-GFP-Zeocin fusion (Goldman et al., 1996; Mizushima and Nagata, 1990)
? A synthetic bacterial promoter, EM-7, for expression of Cycle 3-GFP in E. coli
? Human cytomegalovirus immediate-early (CMV) promoter for high-level expression of your gene in a wide range of mammalian cells
? Zeocin? resistance for stable selection in mammalian cell lines
? Ampicillin and Zeocin resistance genes for selection of transformants in E. coli
The Cycle 3-GFP gene used in this vector is described in Crameri et al., 1996. In this paper, the codon usage was optimized for expression in mammalian cells and three cycles of DNA shuffling were used to generate a mutant form of GFP that has the following characteristics:
? Excitation and emission maxima that are the same as wild-type GFP (395 nm and 478 nm for primary and secondary excitation, respectively, and 507 nm for emission)
? High solubility in E. coli for visual detection of transformed cells
? >40-fold increase in fluorescent yield over wild-type GFP
? The Cycle 3-GFP gene is fused to the Zeocin? resistance marker to correlate GFP fluorescence with resistance to the antibiotic Zeocin.
Zeocin is a member of the bleomycin/phleomycin family of antibiotics isolated from Streptomyces. It shows strong toxicity against bacteria, fungi (including yeast), plants, and mammalian cell lines. It is particularly well-suited for selection of mammalian stable cell lines. Ordering information is provided below.
質粒只保證關鍵序列正確，不保證表達效果。

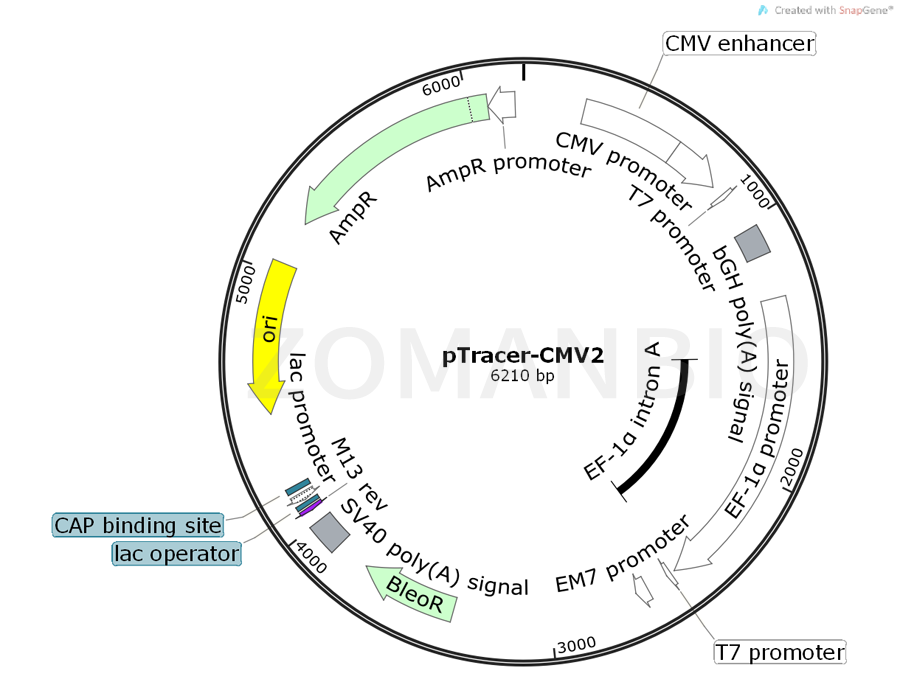

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK388pTracer-CMV2哺乳表達質粒.txt
